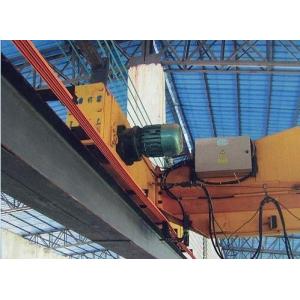

Small Power Flexible Conductor Bar System For Bridge Crane
Quick Details
- Rated value: 4P, 600V, 50~140A.
- Conductor material: Copper.
- Insulated sleeve material: UPVC(heat resistance: 75℃).
- Orange: warning color.
Detailed Product Description
High Tro reel system is a new type of industrial mobile power feeding system, and the most typical advantage is the light weight and tender nature, easy for carry and install. The conductor bar has 3 poles and 4 poles two choice, with a current capacity about 50A to 120A, especially used to carry low power.
Small Power Flexible Conductor Bar System, Bridge Crane Power Conductor System, 4 Poles Seamless Safety Busbar
Mechanical properties:
- Flexible strength:75N/mm2±10%
- Tensile strength:40N/mm2±10%
- Temperature range:
- Common Housing: -30oC up to +60oC
- BAYBLEND Housing: -20oC up to +115oC
- Combustibility:
- Flame retardant
- Self extinguishing:class B 1-no flaming paricles,self-extinguishing.
- Resistance to chemicals:+45oC
- Gasoline:Sulphuric acid 50%
- Mineral Oil:Caustic soda 25% & 50%
- Grease:Hydro-chloric acid,concentrated.
Application
- Small power line feeding system.
- Overhead and elongated tracks for cranes.
- Electric hoists, electric tools, stacking systems.
- Electric tools
- Other applications for supplying power to moving power load.
Design features:
1 safe, stable, non-interface (Apart from the supply point)
2 Small size, easy installation, economy
3 Copper and plastic is in close contact with the shock, won't because shaken to caause sex poor, Stability, good performance
4 Insulators for vinyl chloride + impact resistance, UV resistance, small size, easy installation, economy, special formula, physical resistance.
5 Applicable to all kinds of curved electric hoist
6 To adopt THDW products in the short power distance, low frequency, a better environment.
Technical Parameters
|
Type
|
Poles
|
Conductor Cross Section(mm²)
|
Max. Current(A)
|
Order-NO.
|
|
HTR1004
|
4
|
3×10+1×0.9
|
50A
|
761004
|
|
HTR1504
|
4
|
3×15+1×1.0
|
80A
|
761504
|
|
HTR2004
|
4
|
3×20+1×1.0
|
100A
|
762004
|
|
HTR5004
|
4
|
3×25+1×1.2
|
120A
|
725004
|
|
HTR3504
|
4
|
3×35+1×1.5
|
140A
|
763504
|
|
HTR1003
|
3
|
3×10
|
50A
|
761003
|
|
HTR1503
|
3
|
3×15
|
80A
|
761503
|
|
HTR2003
|
3
|
3×20
|
100A
|
762003
|
|
HTR2503
|
3
|
3×25
|
120A
|
725003
|
|
HTR3503
|
3
|
3×35
|
140A
|
763503
|
