Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel

Name: Light Weight Seamless Conductor Bar 50A140A High Tro Reel
Brand: NANTE
Price: 1 USD

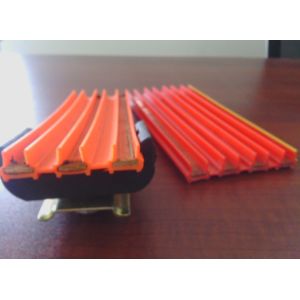

Cheap Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel for sale

Place of Origin : Zhejiang, China

Brand Name : NANTE

Certification : ISO, CE, CCC

Model Number : HTR50 ~120A

MOQ : 100m

Packaging Details : Naked

Delivery Time : Within 10 days

Payment Terms : L/C,T/T

Supply Ability : 1, 000,000m per Year

Common Housing : -30oC up to +60oC

BAYBLEND Housing : -20oC up to +115oC

Flexible strength : 75N/mm2±10%

Tensile strength : 40N/mm2±10%

Contact Now

Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel

Quick Details

Rated value: 4P, 600V, 50~140A.
Conductor material: Copper.
Insulated sleeve material: UPVC(heat resistance: 75℃).

PVC Seamless Conductor System, Flexible Monorail Feeding System, Seamless Power Rail, Multipole Leads Conductor System, High Tro Reel

Mechanical properties:

Flexible strength:75N/mm2±10%

Tensile strength:40N/mm2±10%

Temperature range:

Common Housing: -30oC up to +60oC

BAYBLEND Housing: -20oC up to +115oC

Combustibility:

Flame retardant

Self extinguishing:class B 1-no flaming paricles,self-extinguishing.

Resistance to chemicals:+45oC

Gasoline:Sulphuric acid 50%

Mineral Oil:Caustic soda 25% & 50%

Grease:Hydro-chloric acid,concentrated.

Application

Small power line feeding system.
Overhead and elongated tracks for cranes.
Electric hoists, electric tools, stacking systems.
Electric tools
Other applications for supplying power to moving power load.

Technical Parameters

Type	Poles	Conductor Cross Section(mm²)	Max. Current(A)	Order-NO.
HTR1004	4	3×10+1×0.9	50A	761004
HTR1504	4	3×15+1×1.0	80A	761504
HTR2004	4	3×20+1×1.0	100A	762004
HTR2504	4	3×25+1×1.2	120A	725004
HTR3504	4	3×35+1×1.5	140A	763504
HTR1003	3	3×10	50A	761003
HTR1503	3	3×15	80A	761503
HTR2003	3	3×20	100A	762003
HTR2503	3	3×25	120A	725003
HTR3503	3	3×35	140A	763503

Product Tags:

conductor bar system

crane conductor bar

Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel Images
